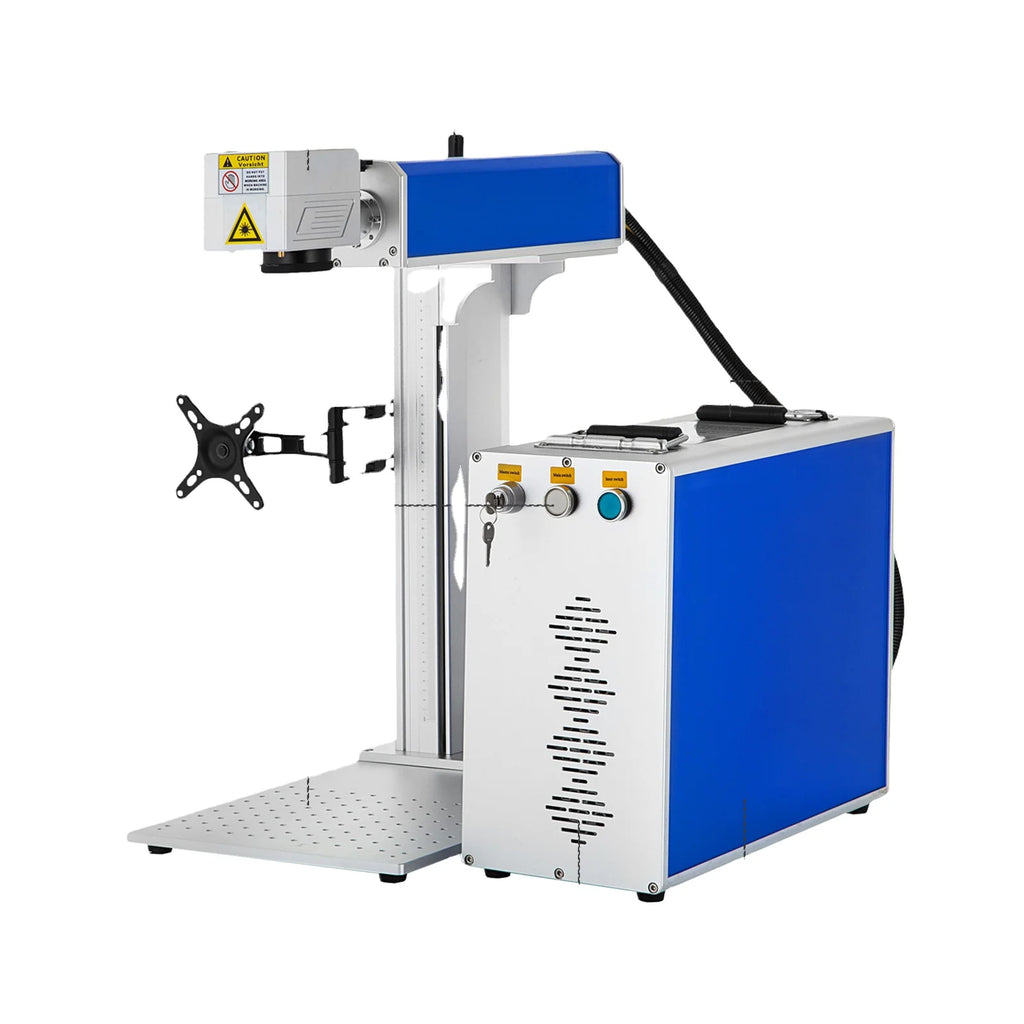

30W Portable Fiber Laser Marking Machine

The 30W portable fiber laser machine can mark on both metal and non-metal, which has the characteristics of sturdy, high efficiency, durable, and reliable. It is widely used for marking jewelry, keyboards of cell phones, auto parts, electronic components, electronic appliances, communication apparatus, sanitary wares, buckles, kitchenware, sterile equipment, hardware tools, knife, glasses, clock, cooker, stainless steel products, etc.

· Strong Compatibility

· Manual Focus Function

· Scanning System

              Refined Fittings

Specification

· Product: Fiber laser engraver

· Power: 30 W

· Voltage: 110 V, 60 Hz

· Marking size: 150x150 mm (5.9x5.9 inch)

· Laser wavelength: 1064 nm

· Laser frequency: 20-80 kHz

· Marking depth: <1 mm

· Marking speed: 8000 mm/s

· Minimum line width: 0.01 mm

· Repeatability: +/-0.0001 mm

· Beam quality: <1.6

· Life: 100000 h

· Compatible Software: Auto-Cad, CorelDraw, Photoshop

· Computer system: Windows XP/7/8/10 (Support 32/64 bit)

· File format: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, etc

· [STRONG COMPATIBILITY]- Can be compatible with Windows XP, 7, 8, 10 (Support 32 bit / 64 bit. NOT compatible with the iOS system). The marking software is compatible with CORELDRAW, AUTOCAD, PHOTOSHOP, and other format files.

· [MANUAL FOCUS FUNCTION]- This fiber laser engraving machine features laser focusing function, as long as the thickness of the material to be marked entered the software, the device can be manually positioned by red light.

· [SCANNING SYSTEM]- The powerful galvanometer system is stable and dramatically enhances the marking speed. Laser engraver metal adopts advanced technology, which is high-efficiency, durable, and reliable.

· [REFINED FITTINGS]- The laser engraver for metal is equipped with a lifting wheel for height adjustment, and three switches on the control panel are easy to operate.

· [WIDELY USED]- The fiber laser 20W is widely used in many industries: Jewelry, computer and cell phone keyboards, auto parts, electronic components, buckles, integrated circuits, and so on.

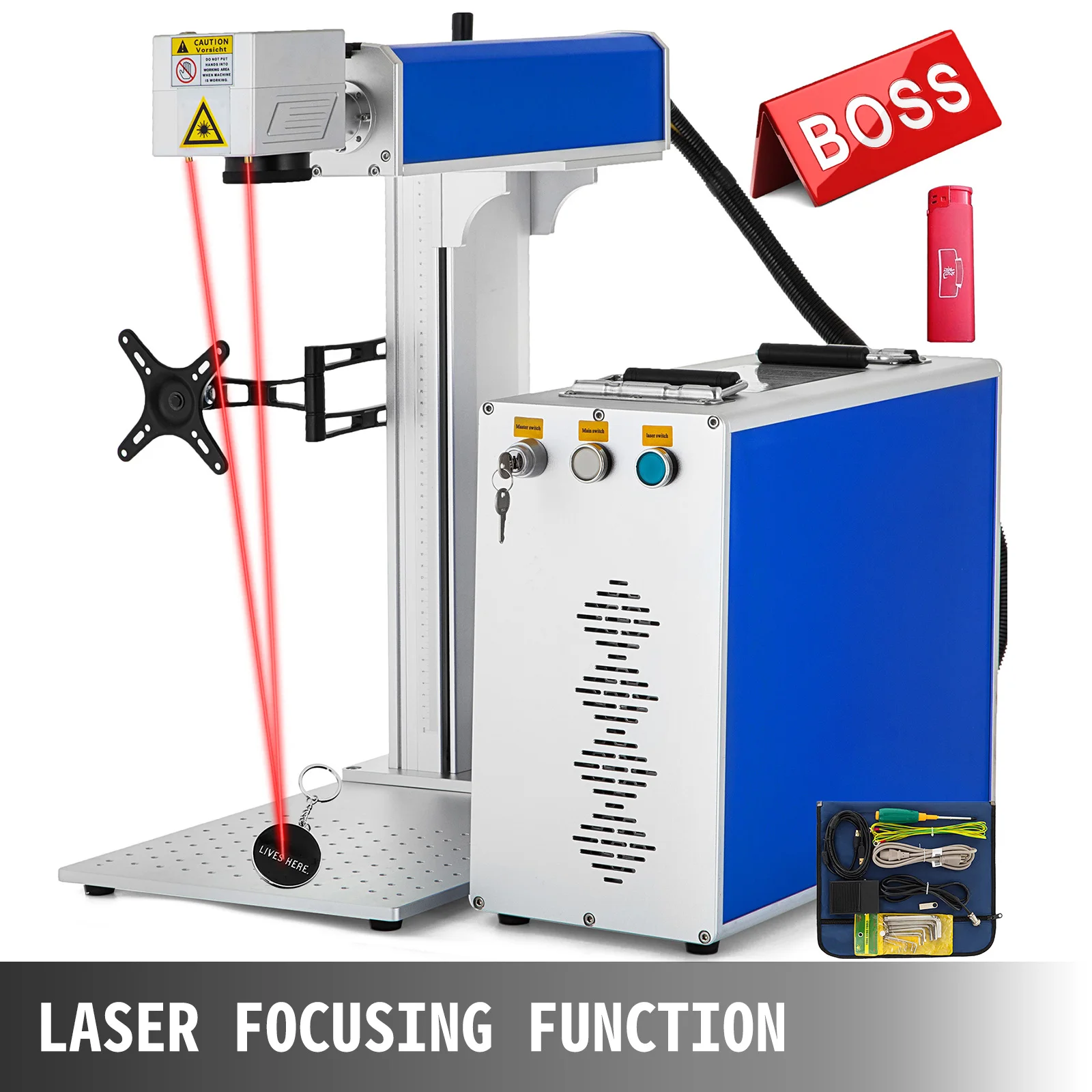

Laser Focusing Function

Laser engraver features laser focusing function for manually focus by identifying the thickness of the material.

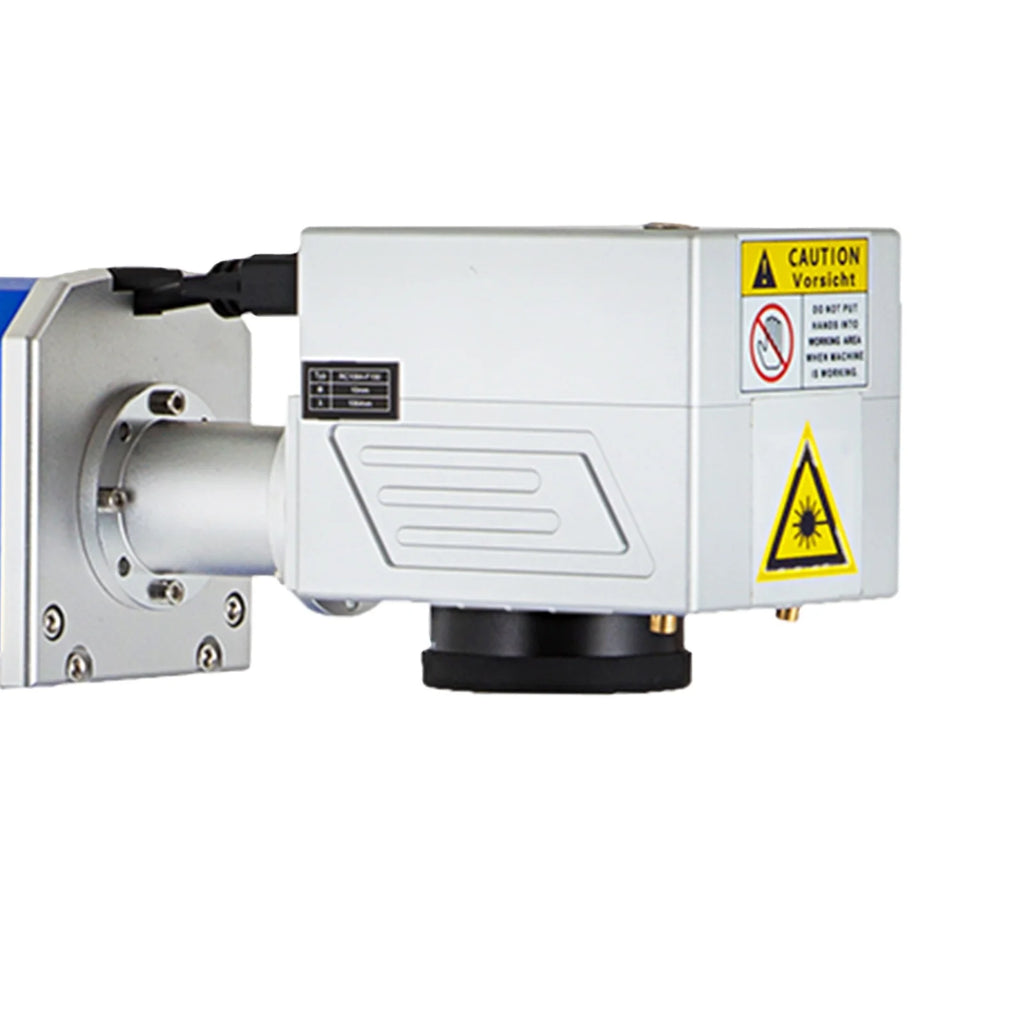

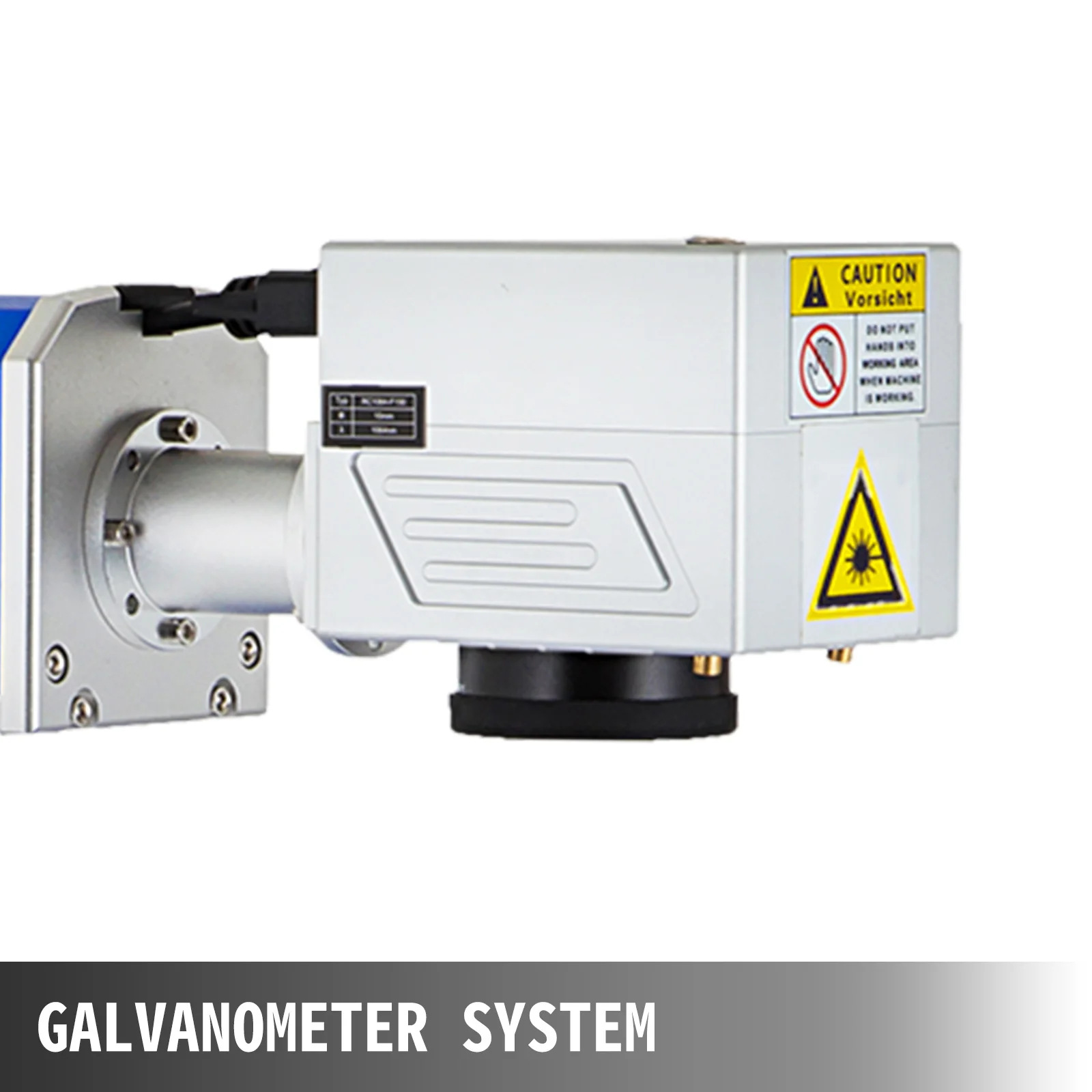

Galvanometer System

High-speed digital scanning galvanometer system, the imported high-speed galvanometer scanning head greatly reduces the delay and improves the marking speed.

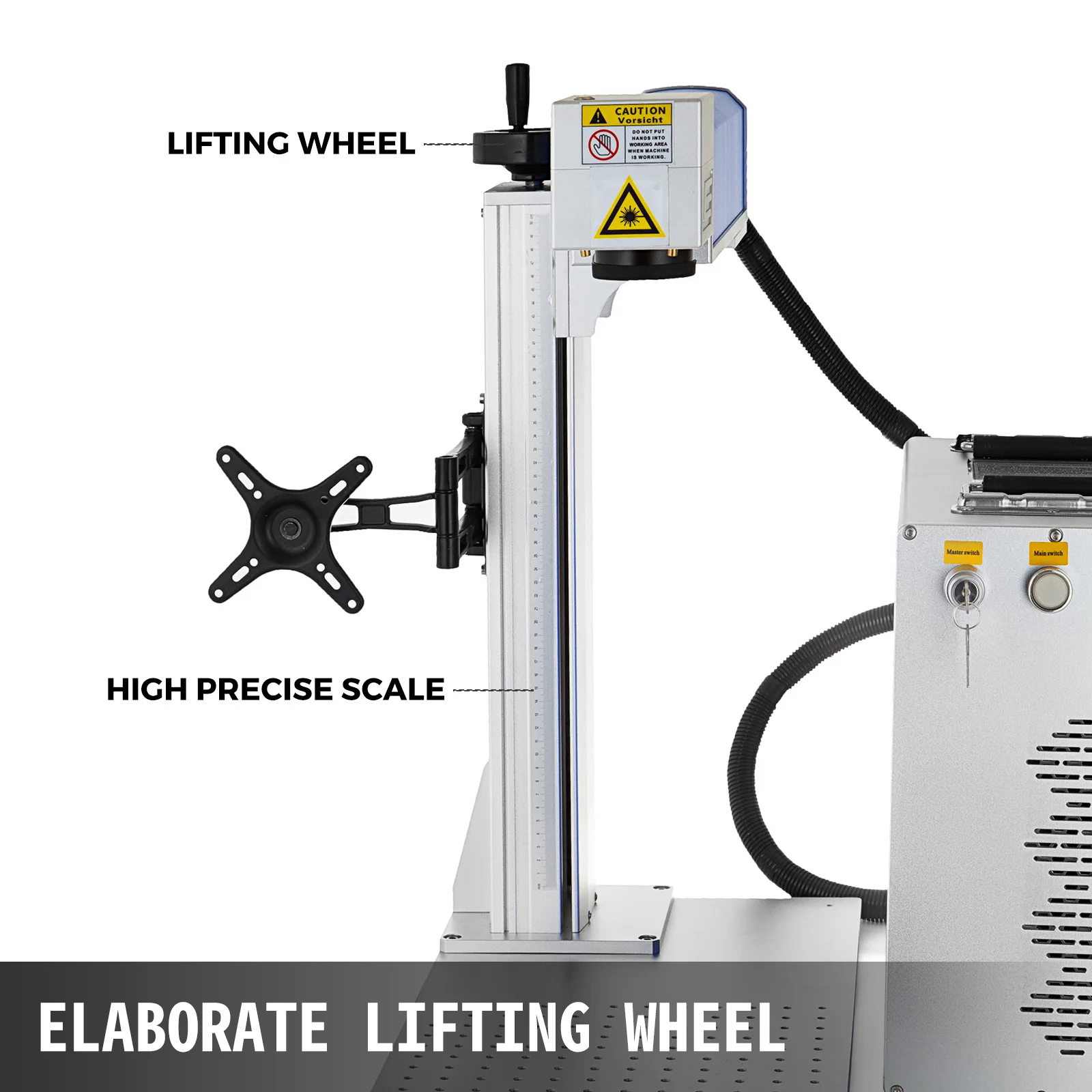

Elaborate Lifting Wheel

Equipped with a hidden lifting rod for high positioning accuracy. The wheel can be used to adjust the height of the galvanometer system, and the little handle on the wheel makes the adjustment easier.

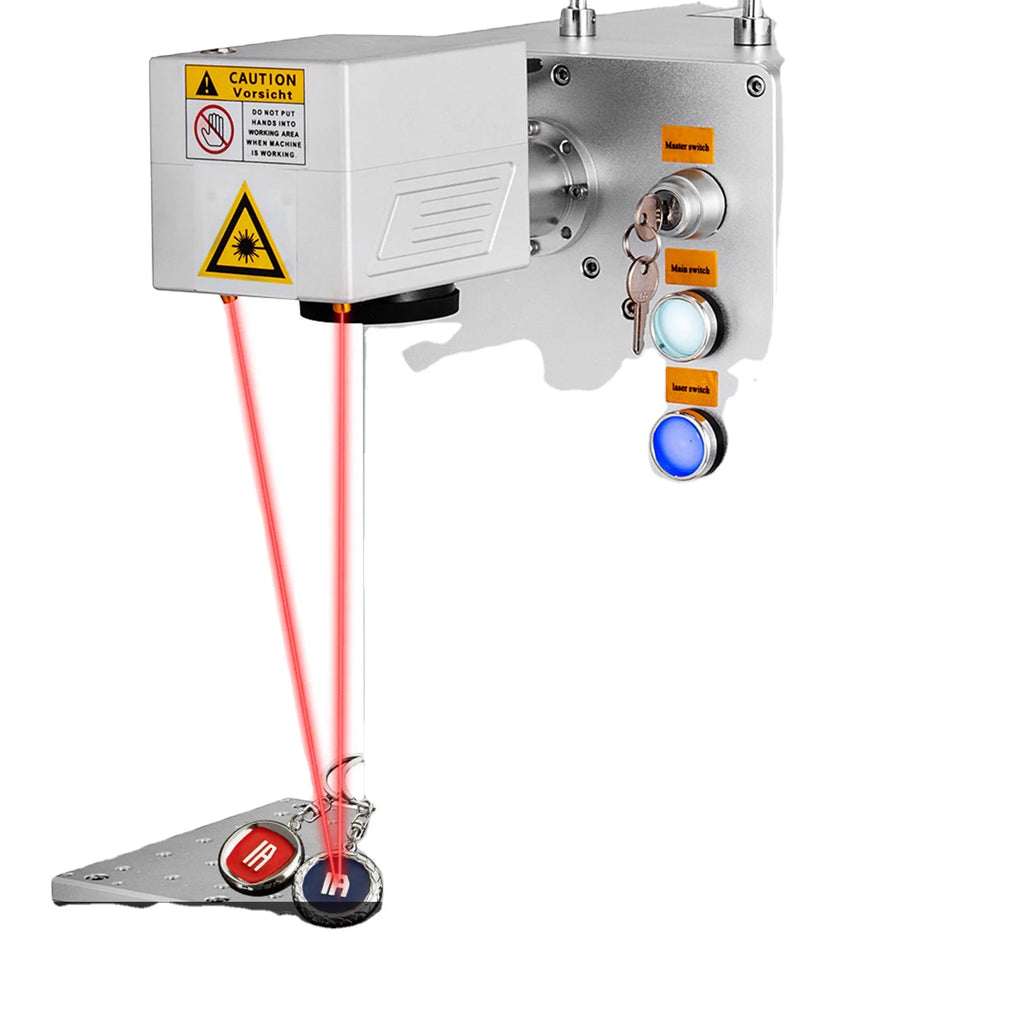

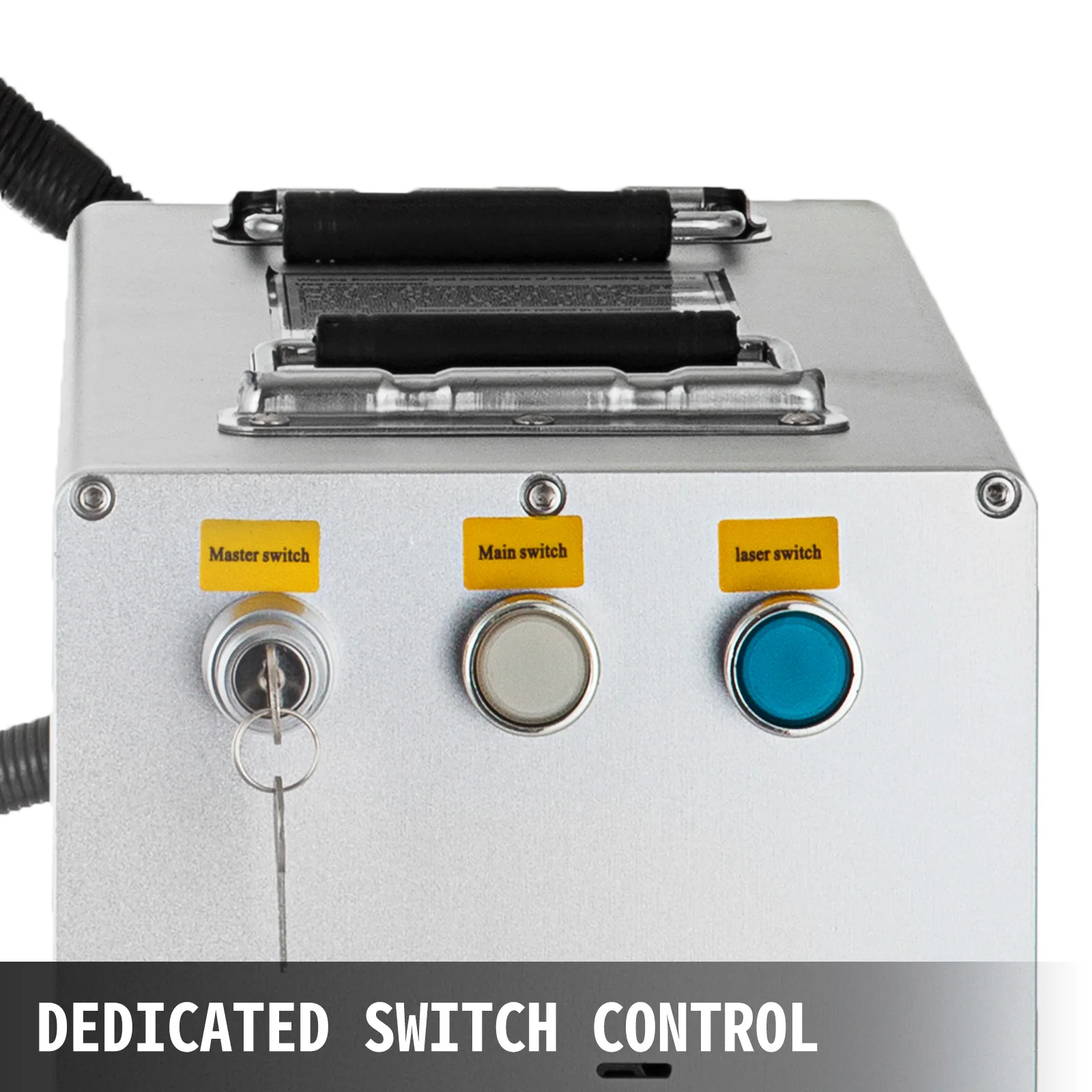

Dedicated Switch Control

This 30W fiber laser machine comes with three switches, master switch, main switch, and laser switch, for dedicated control. The key to the master switch is designed as physical control for a high safety coefficient.

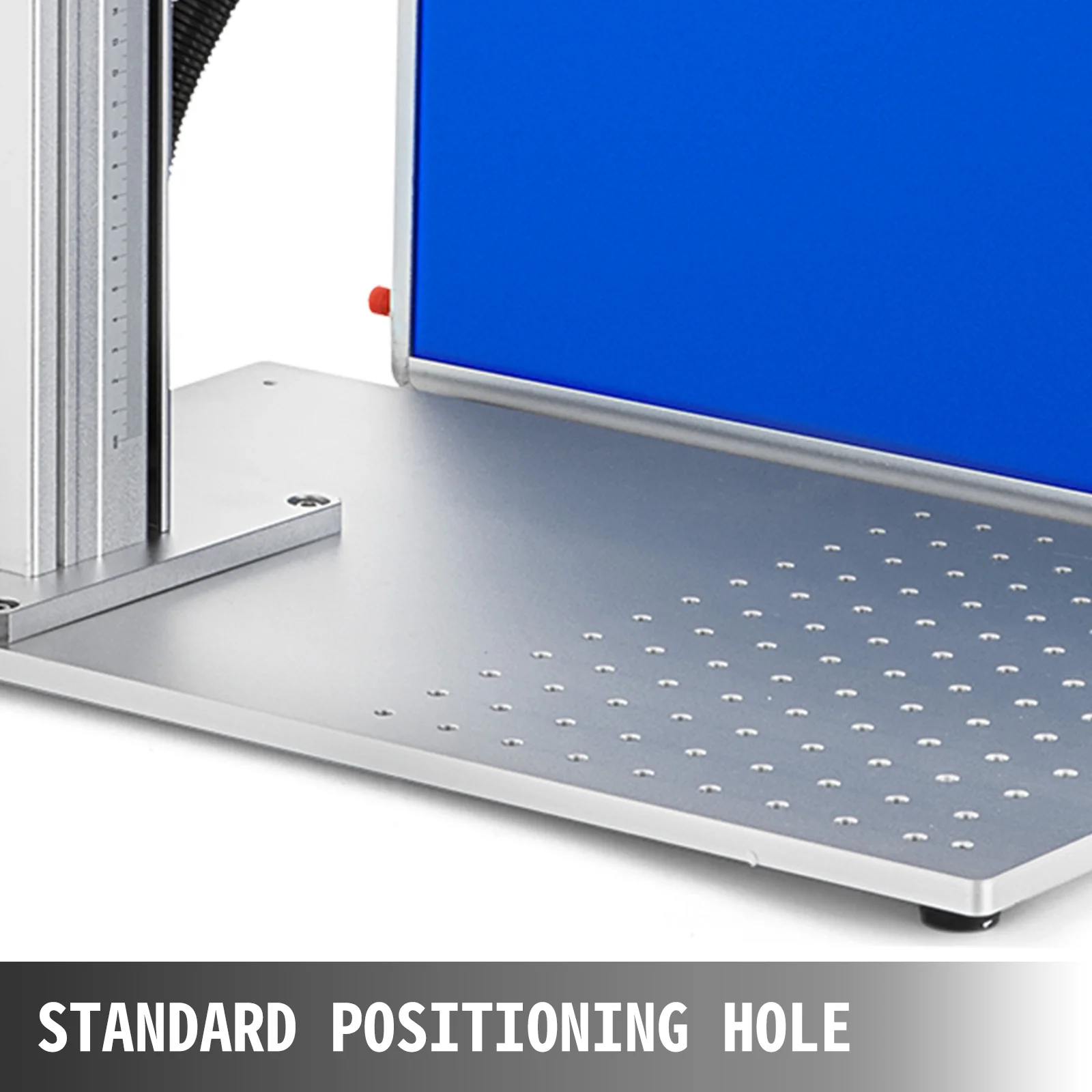

Standard Positioning Hole

Standard positioning holes are provided for quick and easy positioning. Any adjustable position can realize various combinations. It can cooperate with software multi-position printing to improve efficiency.

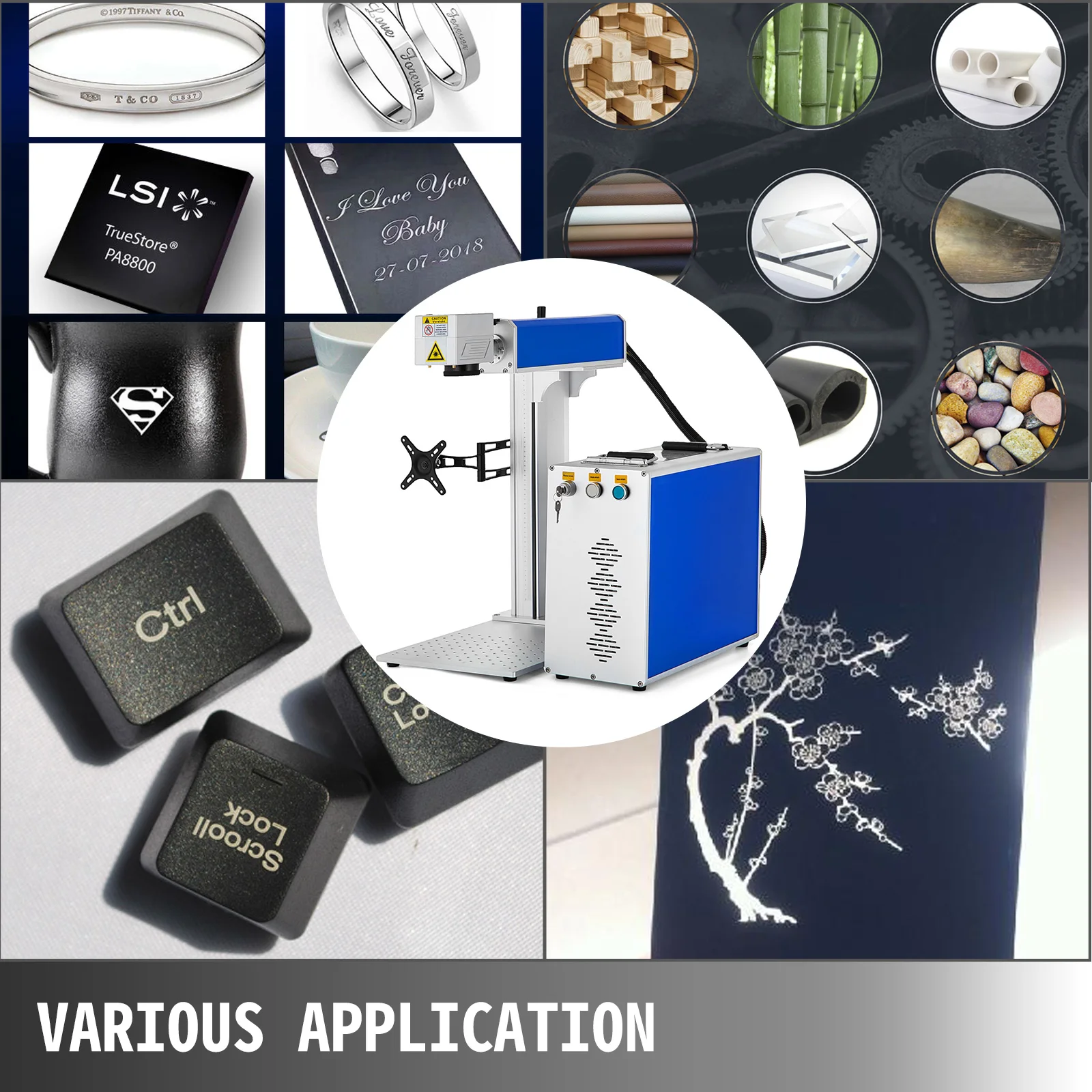

Various Application

Fiber laser rotary engraver Capable to mark on varieties of metals and non-metallic materials, especially suitable for high hardness, high melting point, and brittle materials, making it an ideal tool for many industries.
